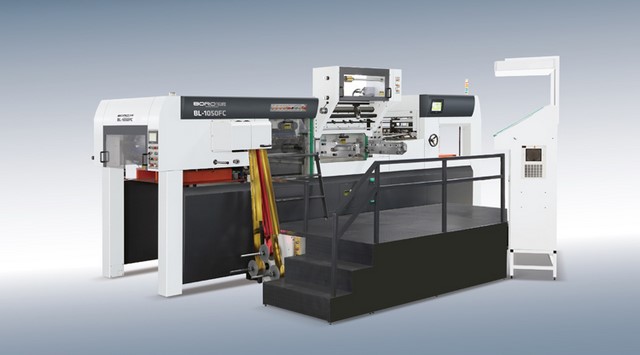

BL-1050FC (70X100) AUTOMATIC HOT STAMPING MACHINE
Product Description
BL-1050FC (70X100) AUTOMATIC HOT STAMPING MACHINE
1050 die-cutting machine series can handle a variety of substrates, in addition to weight in the 80 ~ 2000g / m cardboard, it can also cut up to 4mm thick corrugated board (EB). Die-cutting pressure of 300 tons,die-cutting accuracy of ≤ ± 0.075, the minimum gap width of 8mm, and do no Goukou processing. After installation of heating function can also be 0.2 ~ 1mmPVC, PPC, PET and other plastic materials for heating die-cutting.
| Parameter | |
| Machine model | BL-1050FC |
| Max sheet size | 1050 x 750 mm |
| Min sheet size | 400 x 360 mm |
| Max feeder pile height | 1500 mm |
| Max delivery pile height | 1400 mm |
| Max die cutting size | 1040 x 720 mm |
| Die cutting plate size | 1080 x 736 mm |

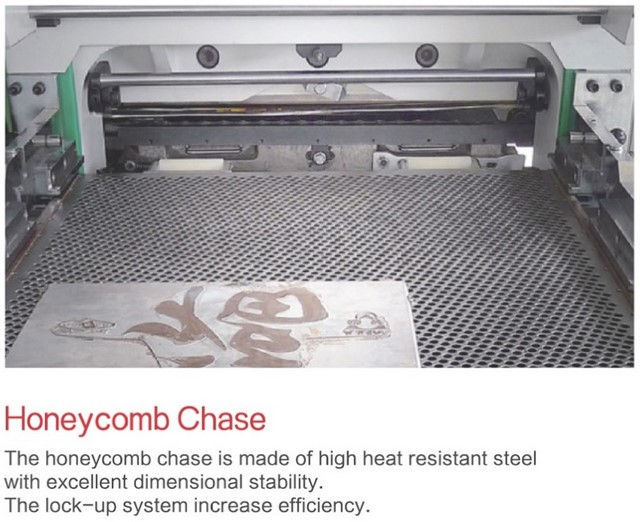

| Inner chase size | 1140 x 750 mm |
| Cutting rule height | 23.8mm或23.6mm |
| Stock range | 80~800g/m2 (paper)， |
| thickness ≦4mm(corrugate) | |
| Die cutting accuracy | ≤ ± 0.075 |
| Min.holding width | 8 mm |
| Max die cutting speed | 7500Rpm |
| Max die cutting force | 300t |
| Air requirement | 0.6-0.7Mpa |
| Power required | 380V/50HZ |
| Overall power | 60 kw |
| Net weight approx | 17.500 kg |
| Overall dimension | 7300 x 5200 x 2700 mm |
| Temperature range | 0℃～180℃ |

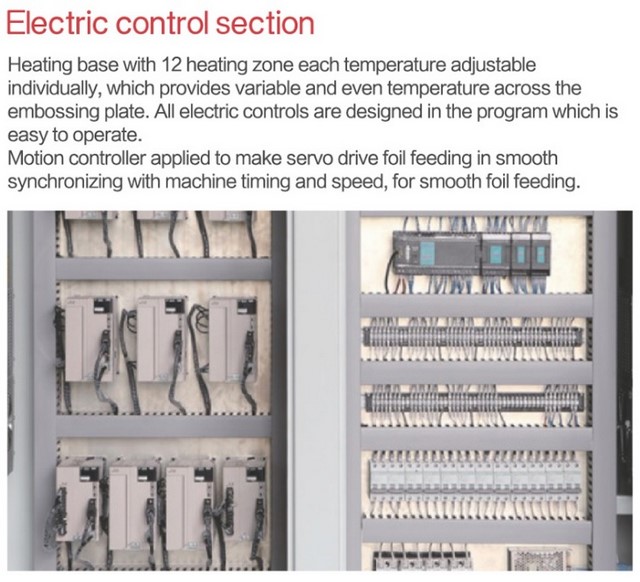

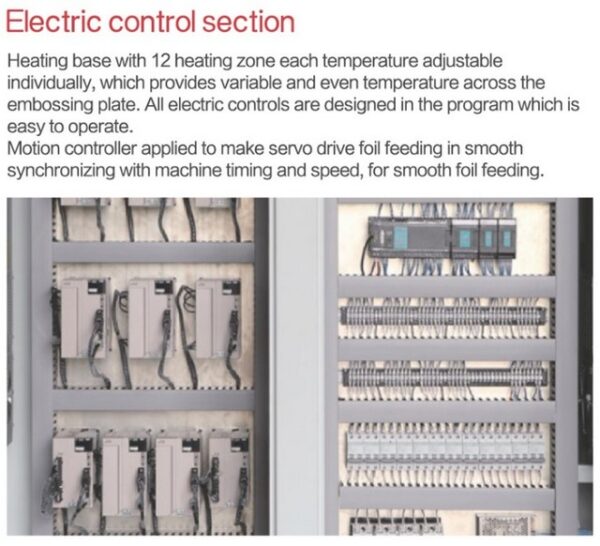

| Heating zone | 12 |
| Power of plate | 24 kw |
