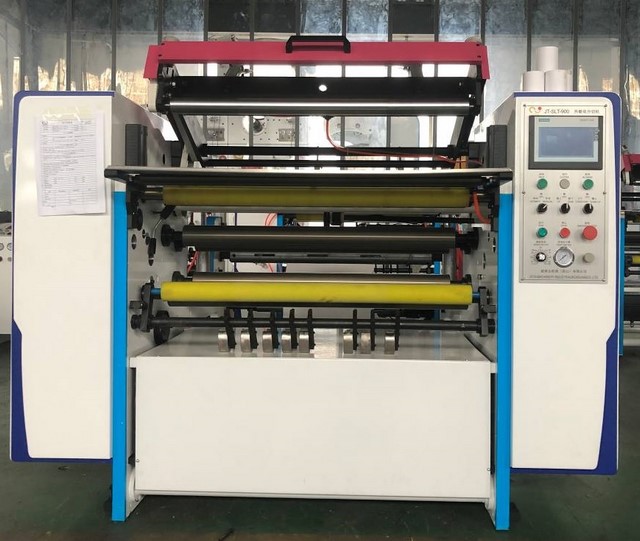

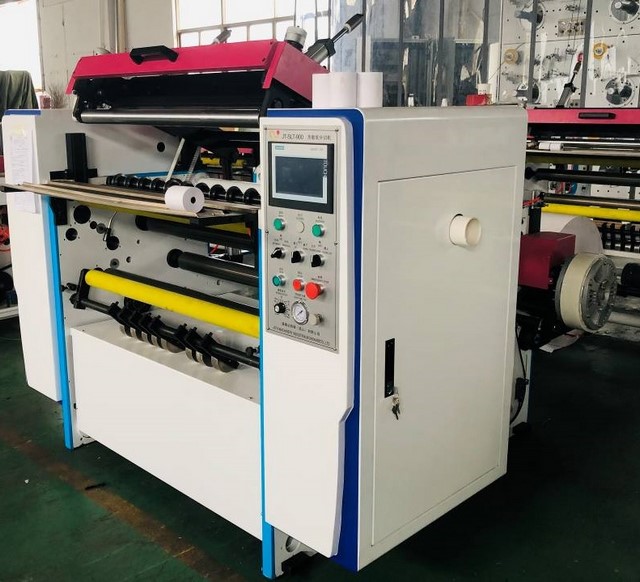

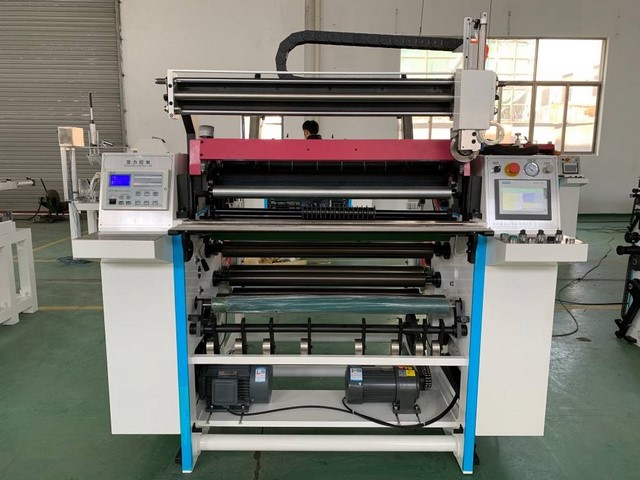

JT-SLT-900 AUTOMATIC THERMAL PAPER SLITTING REWINDING MACHINE
JT-SLT-900 AUTOMATIC THERMAL PAPER SLITTING REWINDING MACHINE
FOB SHANGHAİ 15.000 $
Product Description
JT-SLT-900 AUTOMATIC THERMAL PAPER SLITTING REWINDING MACHINE
Machine Feature:
Components |
|
Unwinding section |
-Chain link automatic lift-up loading system-3’’(76mm)air expanding shaft-Floating roller constant tension– Two set Sensor |
Slitting Section |
– Disc cutter-Disc Cutter Assembly adopt the cam self-locking-Cutter with adjustable and moveable blade base.-Meter counter |
Rewinding Section |
-0.5”,1”,1.5” or as your request-Center Rewinding technology-Pressure roller-Automatic Tucker |
Controlling Section |
–Siemens PLC & HMI from Germany-All the parameters are displayed on the monitor-Low voltage electrical appliances all from Schneider |
Trimmed Waste Edge |
– Edge Waste Blower with Expulsion Tube |
Optional |
– Automatic Paper Core Loader-Automatic Cutting & Gluing Device-Automatic Roll Cut Off & Hammer Unit-Whole Packing Line for Thermal Rolls |
Machine Parameters:
Max. Unwinding Width |
900mm |
Max. Unwinding Dia |
1000mm |
Max. Rewinding Dia |
270mm |
Min Slitting Width |
25mm |
Machine Max. Speed |
110m/min |
Main Power |
2.95kw |
Unwinding Shaft |
3’’ (76mm) air expanding shaft |
Rewinding Shaft |
0.5’’, 1’’ or as your request |
Weigth |
1300kg |
Demension |
2000*1700*1500mm |

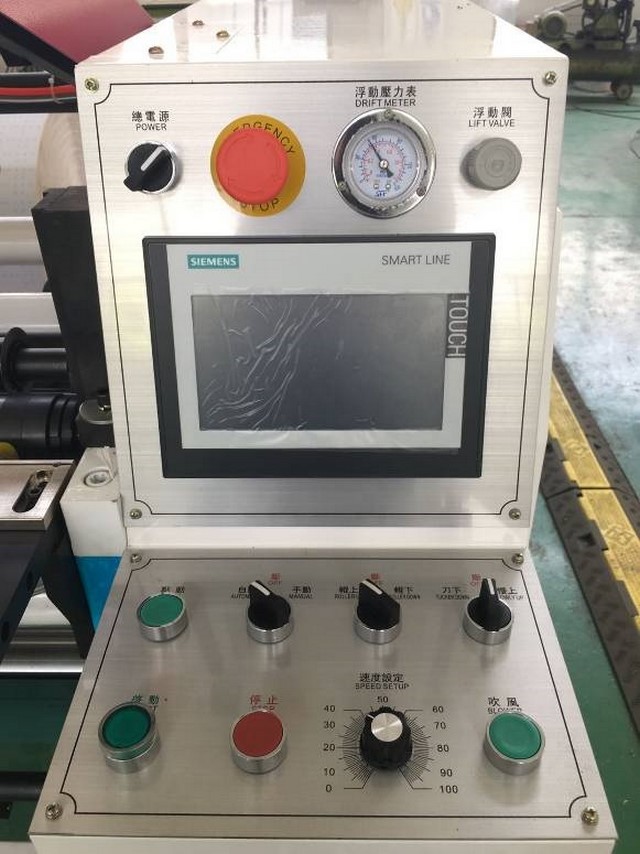

Siemens PLC and Touch Screen

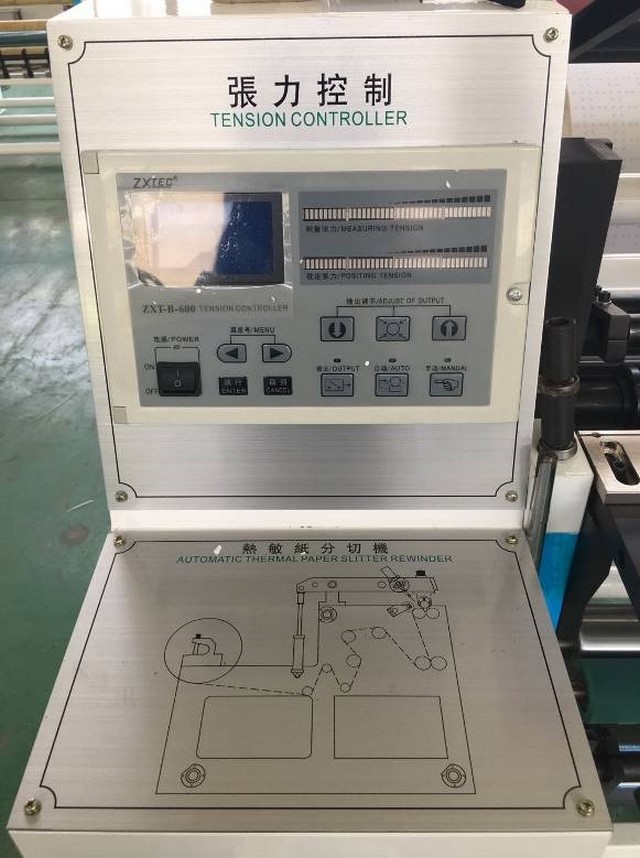

Fully Automatic Tension Controller
MAKİNA VİDEOSU
Optional Parts for Customer(Payable)

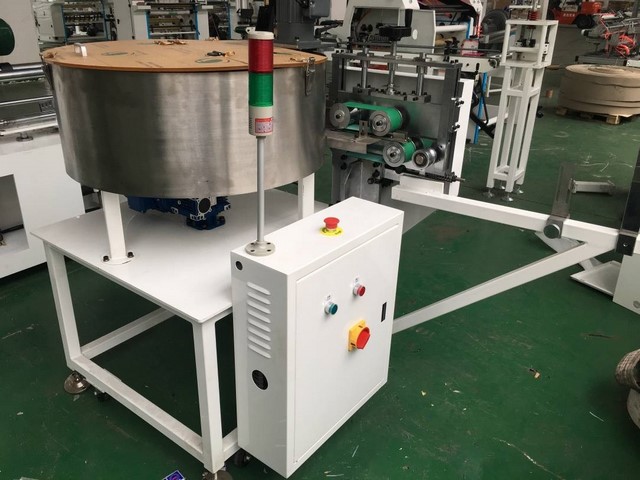

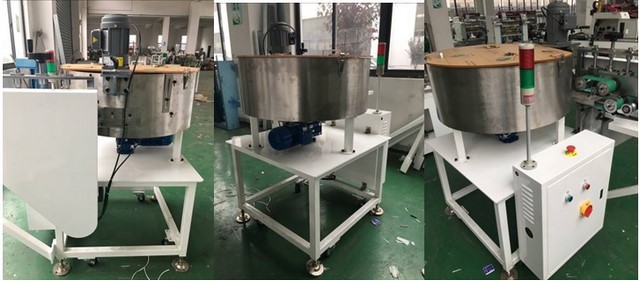

1. Automatic Paper Core Loading Machine: Speed is 15times/min.
Capacity |
0.13/m3 |
Min.Pipe Dia |
12mm |
Max. Pipe Dia |
24mm |
Working Speed |
15times/min |
Power |
0.7KW |
Size |
1000*1000*1200mm |
Weight |
350kgs |
VİDEO

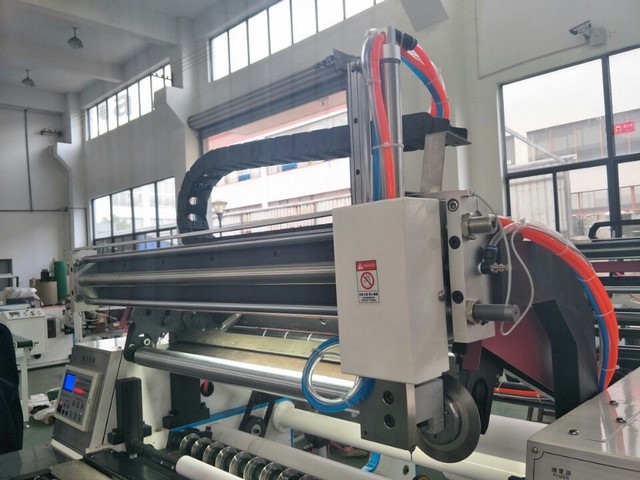

2. Automatic Cutting and Gluing which Synchronous controlled by SIEMENS PLC
